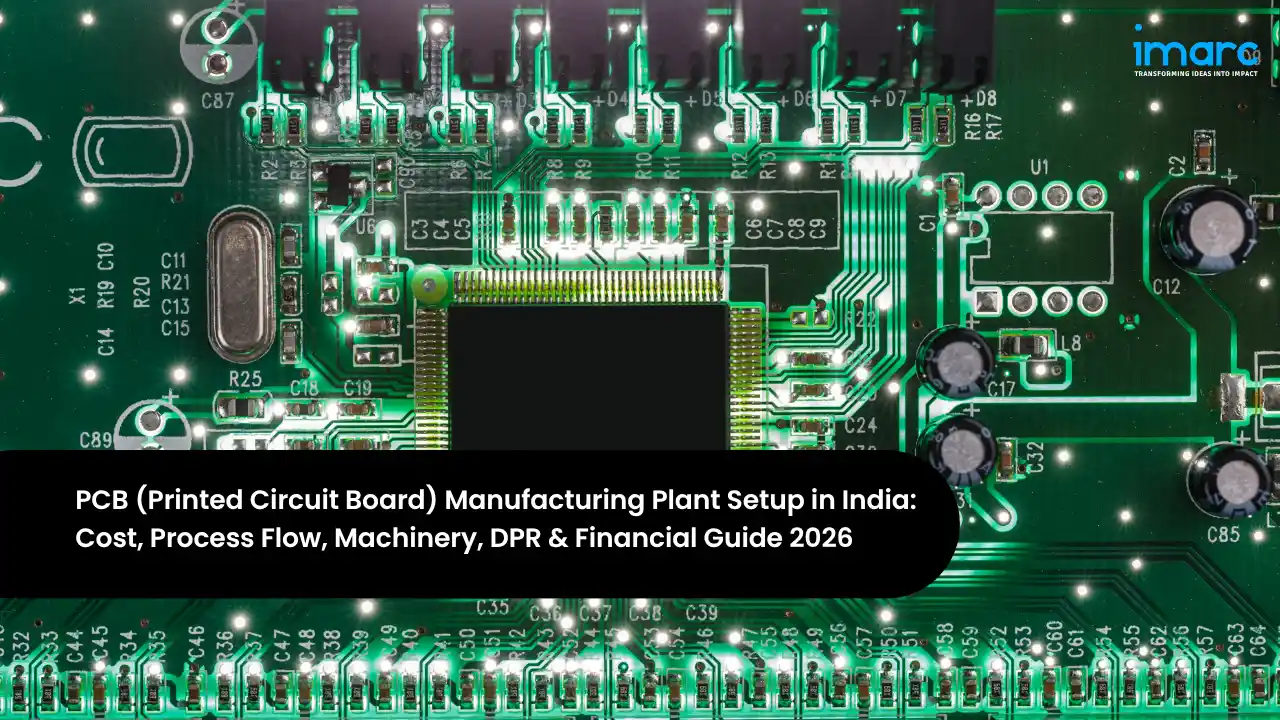

PCB Manufacturing Plant Setup in India

Setting up a PCB Manufacturing Plant in India is a capital-intensive but strategically timed venture, driven by the country's electronics manufacturing push, strong policy incentives, and a large import-substitution opportunity. Printed circuit boards are the backbone of every electronic product, yet India still imports the overwhelming majority of its PCB requirement. As electronics assembly scales up under Make in India and production-linked incentives, domestic PCB fabrication has become one of the most compelling gaps in the electronics value chain for investors to fill.

PCB Manufacturing Plant cost in India depends on capacity, board complexity, and level of automation, with total investment for a modern unit typically ranging from INR 15 crore for a basic single and double-sided line to INR 150 crore or more for an advanced multilayer and HDI facility. Raw materials and process chemicals account for a large share of operating costs, so material sourcing and yield control are critical financial decisions. At healthy capacity utilisation, a well-run Indian plant delivers a net profit margin of 10 to 18% and an IRR of 14 to 22%, with payback typically achieved within 4 to 7 years.

This guide is designed for investors, entrepreneurs, and manufacturers evaluating entry into the PCB Manufacturing Market in India. It covers what the business involves, why demand is rising, the full fabrication process, machinery and raw materials, location and infrastructure planning, a detailed cost and financial breakdown, the licenses you must secure, and how a Detailed Project Report turns all of this into a bankable plan.

India Market Snapshot

The snapshot captures why this sector is attracting strategic investor interest: a sizable, fast-growing market that is still overwhelmingly served by imports, backed by policy incentives aimed squarely at localizing the electronics supply chain. The wide investment range reflects a genuine strategic choice, which is whether to start with simpler single and double-sided boards or to build advanced multilayer and HDI capability from the outset. The rest of this guide unpacks that decision in detail.

Investment Highlights

Indicative Project Cost in India (2026)

These indicative parameters give a realistic frame for early feasibility work. The returns are attractive for a strategic manufacturing venture, but they depend on achieving high yield, securing laminate and chemical supply at predictable prices, and winning qualification with electronics assemblers who demand consistent quality. A well-prepared project report tightens each of these numbers to your specific location, capacity, and board technology.

Table of Contents

• What is PCB Manufacturing?
• Why is PCB Manufacturing Growing in India?
• PCB Manufacturing Process
• Raw Materials and India Sourcing
• Location, Land & Infrastructure
• Machinery and Equipment Required
• PCB Manufacturing Plant Setup Cost in India (CapEx & OpEx)
• Financial Analysis and Profitability
• Licenses & Regulatory Approvals Required to setup PCB Manufacturing Plant in India
• Recent Developments in the India PCB Manufacturing Market
• How a PCB Manufacturing Plant Project Report (DPR) Helps Investors
• Frequently Asked Questions

What is PCB Manufacturing?

PCB Manufacturing is the fabrication of printed circuit boards, the copper-patterned boards that mechanically support and electrically connect the components inside every electronic device. Starting from copper-clad laminate, a PCB Manufacturing Plant builds up conductive copper traces, drilled and plated holes, protective solder mask, and surface finishes to produce a finished board ready for component assembly. The activity sits at the heart of the electronics value chain, because no electronic product can be assembled without the board that carries its circuitry.

From a business perspective, what makes PCB Manufacturing attractive in India is the combination of deep, diversified demand and a very high current reliance on imports. Every sector that is electrifying and digitizing, from mobile phones and automobiles to telecom infrastructure and defence, needs printed circuit boards, and most of that demand is currently met from overseas. A domestic fabricator that can meet quality and delivery expectations is positioned to capture a structural import-substitution opportunity.

• Consumer Electronics: Boards for mobile phones, laptops, appliances, and wearables, the largest and fastest-growing volume segment in India.
• Automotive Electronics: Boards for electric vehicles, control units, and infotainment, where quality and reliability requirements are stringent and rising.
• Telecom & Networking: Boards for base stations, routers, and data infrastructure, driven by continued network expansion.
• Industrial, Defence & Medical: High-reliability and specialized boards that command premium pricing and favour trusted domestic suppliers.

The Main Types of Printed Circuit Boards

Understanding which board types your target market demands is essential before selecting machinery, because complexity drives both capital cost and margin:

This choice is the single most important early decision in the business, because it dictates which machines you buy, the cleanroom class you need, and which customers you can serve. Single and double-sided boards need lower capital and are a practical entry point, while multilayer and HDI boards require lamination, fine-line imaging, and tighter process control but command far higher value. Many successful entrants begin with double-sided capability and build toward multilayer as they qualify with demanding customers.

Why is PCB Manufacturing Growing in India?

Key Growth Drivers in the Indian Market

India's PCB Manufacturing market is being pushed forward by several structural factors specific to the country's electronics ambitions and policy environment. The sector benefits from demand growth and deliberate industrial policy at the same time, which gives it unusual momentum:

• Electronics manufacturing boom: Rapid growth in domestic electronics assembly, led by mobile phones and consumer devices, is creating large and rising demand for the printed circuit boards those products depend on.
• Policy incentives and localization: Production-linked incentive schemes for electronics and components, along with the broader Make in India push, actively encourage domestic PCB fabrication and component localization.
• Import substitution opportunity: India currently imports the majority of its PCB requirement, so a domestic plant meeting quality and delivery norms can capture a very large substitution opportunity.
• Global supply-chain diversification: Global electronics brands are diversifying sourcing beyond a single country, and India is a leading beneficiary of this China-plus-one shift.
• Automotive and telecom electrification: The growth of electric mobility, advanced driver systems, and telecom infrastructure adds high-value, high-reliability board demand beyond consumer electronics.

India-Specific Market Opportunity

The strongest opportunity lies in serving domestic electronics assemblers who currently import boards and would prefer a reliable local supplier for shorter lead times, lower logistics cost, and easier design collaboration. A plant that qualifies with electronics manufacturing services providers and original equipment makers can convert import substitution into long-term supply relationships. High-reliability segments such as automotive, defence, and medical are especially attractive because they value trusted domestic supply and pay a premium for it.

PCB Manufacturing Process

Understanding the fabrication process helps you plan equipment, chemical handling, and the main cost drivers. PCB manufacturing is a precise, multi-stage chemical and mechanical process carried out under controlled conditions, and the number of stages rises with board complexity. The typical flow for a double-sided or multilayer board runs through the following stages:

Process: Subtractive Fabrication Route

The dominant method is the subtractive process, in which unwanted copper is etched away to leave the required circuit pattern. It is well established, cost-effective, and suitable for the single-sided through multilayer boards that make up the bulk of Indian demand, with additional lamination and plating steps added as layer count increases.

Two points determine profitability across this flow. First, yield is decisive, because a defect at any stage can scrap an expensive part-finished board, so process control, cleanliness, and inspection directly govern margin. Second, several stages involve hazardous chemicals and generate effluent, so chemical management and treatment are core operating disciplines rather than afterthoughts. Automated optical inspection and electrical testing are what allow a plant to certify quality to demanding customers.

Raw Materials and India Sourcing

Raw materials and process chemicals are a major share of operating costs in a PCB Manufacturing Plant, making procurement strategy a central financial discipline. Copper-clad laminate is the single largest material input, and its price tracks copper and resin markets, so supplier relationships, grade selection, and inventory planning materially affect margin.

Because laminate and chemicals dominate cost, disciplined procurement and high material yield are the biggest levers on profitability. India still imports a share of specialty laminate and foil, so building reliable supplier relationships and holding sensible buffer stock protects against both price swings and supply disruption. As domestic component localization deepens under policy support, more of this supply chain is expected to be available locally, gradually improving cost and lead times for Indian fabricators.

Location, Land & Infrastructure

Where you set up your PCB Manufacturing Plant in India significantly affects proximity to electronics customers, chemical logistics, and the regulatory timeline. Because PCB fabrication uses hazardous chemicals and generates effluent, industrial zoning clearance, water availability, and pollution-control approvals are central to site planning.

Best States for PCB Manufacturing Plant Setup in India

The strongest locations combine proximity to electronics assemblers, reliable power and water, and a pollution-control regime experienced with chemical effluent. Tamil Nadu and Karnataka lead for their electronics ecosystems and customer density, while Gujarat is attractive for its chemical supply base and effluent infrastructure. Because fabrication is water and chemical intensive, water availability and effluent-treatment capacity should weigh heavily in the final choice, alongside access to skilled process technicians.

Site Selection Criteria

• Proximity to electronics customers: Being near assembly clusters shortens lead times and eases design collaboration, which is a decisive advantage in winning qualification and repeat orders.
• Reliable power and water: Fabrication is energy and water intensive, so stable power and adequate treated-water supply are essential, and backup power protects sensitive processes.
• Effluent treatment capability: Chemical effluent must be treated in an Effluent Treatment Plant before discharge, a mandatory requirement under pollution-control norms that shapes site design.
• Industrial zone allocation: Setting up in a notified electronics or industrial zone simplifies approvals, utilities, and effluent norms and speeds commissioning.
• Skilled workforce availability: Access to trained process engineers and technicians supports high yield and consistent quality, which are central to profitability.

Infrastructure Requirements (Mid-Sized Plant)

Infrastructure planning for a PCB plant is more demanding than for a simple factory, because cleanroom conditions, high-purity water, and effluent treatment are core process requirements that regulators and customers both scrutinize. Under-sizing the ETP or water system is a costly mistake that can delay the consent to operate and constrain output. Building in headroom on water, power, and effluent capacity from the start makes both scaling and compliance far smoother.

Machinery and Equipment Required

Machinery is the largest single capital expenditure in a PCB Manufacturing Plant, typically 45 to 55% of total CapEx, and the line-up grows with board complexity. Because the process combines precision mechanical operations with chemical processing, equipment must be accurate, corrosion-resistant, and supported by strong inspection capability. A single and double-sided line needs a core set of machines, while multilayer and HDI production adds lamination and fine-line imaging equipment.

Equipment selection should follow your chosen board technology rather than the other way around. A double-sided line keeps capital moderate and commissioning quicker, while adding a lamination press and fine-line imaging transforms the plant into a multilayer fabricator with far higher value capture but greater technical and capital demands. Inspection and testing equipment is easy to under-budget yet essential, because customer qualification and yield both depend on being able to detect defects reliably before dispatch.

PCB Manufacturing Plant Setup Cost in India (CapEx & OpEx)

The tables below give you a breakdown of both the upfront capital investment and the ongoing operating costs, based on industry analysis of a mid-sized facility in India. The actual cost for your specific plant will depend on your chosen location, capacity, board technology, and automation level.

Capital Expenditure (CapEx) Cost Structure

The CapEx profile is machinery-led, but the cleanroom, effluent, and utility lines are substantial and easy to underestimate for a first-time entrant. Working capital is also significant, because laminate and chemicals must often be bought ahead of sales while customer payments arrive later. Under-provisioning working capital or effluent capacity is a common cause of low utilisation and compliance delays in early operations, so both deserve careful budgeting.

Operating Expenditure (OpEx) Cost Structure

With materials and chemicals dominating operating cost, this is fundamentally a materials-and-yield business, and margin is made or lost in procurement, process control, and scrap reduction. Operating costs also rise over time as laminate, chemical, power, and labour prices move with inflation. A full project report models this progression year by year and stress-tests margins against material price swings and yield variability, which are the biggest variables in the business.

Financial Analysis and Profitability

Based on analysis of a mid-sized PCB Manufacturing Plant in India, the financial profile is solid for a strategic manufacturing venture, supported by strong import-substitution demand, policy incentives, and diversified end markets. Because the business is capital-intensive, achieving and sustaining high yield and utilisation is central to the returns.

Yield and capacity utilisation are the two metrics that most determine outcomes, because a capital-intensive plant must run high and clean to spread its fixed costs and avoid scrapping expensive boards. An operator qualified with electronics assemblers and running proven processes can hold utilisation comfortably above break-even, while one still stabilizing yield will see margins swing. This is why process capability and customer qualification are as central to the financial model as the equipment itself.

There are several ways to push margins higher in the Indian context: moving up to higher-value multilayer and HDI boards, qualifying with automotive, telecom, and defence customers who pay for reliability, improving yield through disciplined process control, and running at high utilisation to spread fixed costs. Access to policy incentives for electronics component manufacturing can further strengthen project economics.

Key Risks and Mitigation

The principal risks are low yield during ramp-up, material price volatility, and environmental compliance. Yield risk is mitigated by proven process technology, skilled engineers, and rigorous inspection; material risk is mitigated by disciplined procurement and buffer stock of key laminate and chemicals; and compliance risk is mitigated by a well-sized effluent plant and strict chemical handling. A fabricator that treats yield, sourcing, and compliance as core management priorities is far more likely to sustain the returns the model promises.

Licenses & Regulatory Approvals Required to setup PCB Manufacturing Plant in India

Manufacturers planning to establish a PCB Manufacturing Plant in India are generally required to obtain various approvals, registrations, and clearances before commencing commercial operations. Because fabrication involves hazardous chemicals and effluent, environmental approvals are especially central. These typically include:

• Business & Tax Registration: Company or firm incorporation, GST registration, and Udyam (MSME) registration.
• Factory Licence: Factory establishment and industrial operation approval under the Factories Act.
• Pollution Control Consents: Consent to Establish and Consent to Operate from the State Pollution Control Board (CTE and CTO).
• Hazardous Waste Authorization: Authorization for storage, handling, and disposal of hazardous chemicals and sludge.
• Fire Safety NOC: Fire safety, chemical handling, and workplace safety compliance for the facility.
• Environmental Clearance (where applicable): Applicable clearances depending on project scale and effluent load.
• Labour Registrations: Employee welfare and workforce-related registrations such as EPF and ESI.

For a PCB plant, environmental and effluent approvals are the long-lead items and should be initiated at the earliest planning stage, in parallel with land acquisition, rather than after construction. Engaging a consultant familiar with your state's pollution-control board is usually worth the cost, because a delayed or rejected consent can idle a fully built and expensive plant. Sequencing approvals well can shave months off the project timeline.

Note: The exact approvals, registrations, licences, and compliance requirements may vary depending on factors such as plant location, capacity, board technology, and applicable state and central government regulations. Businesses are advised to undertake a detailed regulatory assessment during the project planning stage to ensure full compliance and timely implementation.

Recent Developments in the India PCB Manufacturing Market

A few structural trends give useful context for investors considering entry into the PCB Manufacturing Market in India:

• Electronics component incentives: Policy support for electronics and component manufacturing, including production-linked incentives, is strengthening the case for domestic PCB fabrication and deeper localization.
• Supply-chain diversification: Global electronics brands are diversifying sourcing beyond a single country, and India is positioning itself as a key alternative manufacturing base under the China-plus-one shift.
• Rising domestic assembly: The rapid growth of domestic electronics assembly is enlarging the addressable market for locally made boards and improving the case for backward integration into fabrication.

The common thread is a policy and demand environment deliberately aligned to localize the electronics supply chain, of which PCBs are a critical missing piece. For a new entrant, the implication is clear: the window to establish domestic fabrication capacity and qualify with assemblers is opening now, and early movers who build quality, yield, and compliance into their model from the start will be best placed as localization deepens through the decade.

How a PCB Manufacturing Plant Project Report (DPR) Helps Investors

A comprehensive PCB Manufacturing Plant Project Report (DPR) provides a structured roadmap for establishing the facility by evaluating every aspect of the project, from market demand and board technology to machinery selection, plant layout, and economics. It helps investors determine the optimal capacity and technology mix, estimate capital expenditure (CapEx) and operating expenditure (OpEx), assess profitability, and identify potential risks before implementation.

The report also includes detailed financial projections such as revenue forecasts, production costs, cash flow analysis, break-even assessment, return on investment (ROI), and payback period calculations. These insights enable investors, lenders, and stakeholders to make informed decisions and evaluate the long-term viability of the project. For entrepreneurs, manufacturers, and financial institutions, a well-prepared DPR serves as an essential decision-making tool, supporting investment planning, project financing, and successful plant implementation.

For a PCB plant specifically, a strong DPR also clarifies the board-technology choice, the yield and utilisation assumptions, and the environmental-approval pathway, which are the factors most likely to determine success. By modelling economics against realistic yield and utilisation and sequencing approvals properly, the report turns a capital-intensive but strategically valuable opportunity into an executable plan that lenders and partners can trust.

Frequently Asked Questions

How much does it cost to set up a PCB Manufacturing Plant in India?

It varies by capacity, board technology, and automation level. A basic single and double-sided line can start around INR 15 crore, while an advanced multilayer and HDI facility can require INR 150 crore or more. Machinery typically accounts for 45 to 55% of CapEx. A detailed project report gives you the exact numbers for your target setup.

What is the PCB manufacturing process step by step?

The core flow is material preparation, imaging, etching, drilling, copper plating, lamination for multilayer boards, solder mask, surface finish, silkscreen, and finally electrical testing and routing to final shape.

What machinery is required for PCB manufacturing?

Key equipment includes an imaging or exposure unit, an etching line, a CNC drilling machine, electroless and electrolytic plating lines, a lamination press for multilayer boards, solder mask coating, a surface finish line, automated optical inspection and electrical test, a routing machine, and an effluent treatment plant.

What are the major raw materials required for PCB production?

The main inputs are copper-clad laminate such as FR-4, copper foil, dry film photoresist, plating and etching chemicals, and solder mask and surface finish materials. Raw materials and chemicals make up a large share of operating costs.

Which states in India are best for setting up a PCB Manufacturing Plant?

Tamil Nadu, Karnataka, Maharashtra, Gujarat, Uttar Pradesh (Noida), and Andhra Pradesh or Telangana lead, combining electronics clusters, industrial zones, and, in Gujarat's case, strong chemical and effluent infrastructure.

Is PCB manufacturing a profitable business in India?

Yes. A well-run plant typically delivers a 10 to 18% net profit margin and a 14 to 22% IRR, with a 4 to 7 year payback at healthy yield and utilization, supported by strong import-substitution demand, though it is capital-intensive and depends on high process yield.

How do I get a detailed project report (DPR) for a PCB Manufacturing Plant in India?

A DPR covers the full plant setup, including board technology, capacity, machinery, layout, raw materials, licenses, and complete financials, providing a bankable roadmap for investors and lenders.
